D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
629-7W2-640-1NA | 13.2068 |  |
1397 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-7W2-640-1NA | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
628-015-621-053 | 3.3244 | |
6689 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-015-621-053 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | ||
 |
629-5W1-640-7T3 | 7.9568 | |
2786 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-5W1-640-7T3 | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (4 + 1 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | 0.370" (9.40mm) | |
 |
628-037-621-057 | 7.0926 | |
3733 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 628-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-037-621-057 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal and Power | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | ||
 |
627-2W2-224-1T4 | 5.9451 | |
9128 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount | Grounding Indents, Shielded | 627-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-2W2-224-1T4 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Power | 2 (Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
627-M09-222-BT2 | 3.4230 | |
5143 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-M09 | Black | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-627-M09-222-BT2 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A | Copper Alloy | UL94 V-0 | Signal | 9 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
629-M15-340-LT2 | 6.4969 | |
3893 | 0.00000000 | EDAC Inc. | 629-M | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Shielded | 629-M15 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-629-M15-340-LT2 | EAR99 | 8536.69.4040 | 300 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, Combo | - | Machined | 2 (DA, A) | 0.370" (9.40mm) | ||
 |
630-5W5-640-3TC | 16.3469 | |
2980 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-5W5 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-5W5-640-3TC | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 5 (Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | 0.520" (13.20mm) | |
 |
628-13W6224-3T4 | 12.2079 | |
6318 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-13W6224-3T4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (7 + 6 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
 |
630W9W4-340-3NA | 22.1432 | |
7900 | 0.00000000 | EDAC Inc. | 630-WC | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole, Right Angle | Shielded | 630W9W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630W9W4-340-3NA | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | - | |
 |
628-25W3222-1N1 | 11.1777 | |
6485 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-25W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-25W3222-1N1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | - | |
 |
630-27W2240-2T4 | 7.9174 | |
8707 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-27W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-27W2240-2T4 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 27 (25 + 2 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 27W2 | 0.370" (9.40mm) | |
 |
627W21W1624-3NA | 24.8141 | |
2122 | 0.00000000 | EDAC Inc. | 627-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Grounding Indents, Shielded | 627W21W | Black | Solder | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627W21W1624-3NA | EAR99 | 8536.69.4040 | 400 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 21 (20 + 1 Power) | 125V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 21W1 | - | |
 |
630-17W5250-3N1 | 13.8016 | |
5981 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Shielded | 630-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-17W5250-3N1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | 0.370" (9.40mm) | |
 |
629-17W5240-4ND | 14.8354 | |
8609 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-17W5240-4ND | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | 0.370" (9.40mm) | |
 |
630-7W2-250-2ND | 9.2998 | |
9879 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-7W2-250-2ND | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 7 (5 + 2 Power) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | 0.370" (9.40mm) | |
 |
622-025-660-011 | 6.4438 | |
5999 | 0.00000000 | EDAC Inc. | 622 | - | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Mounting Brackets, Shielded | 622-025 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | EAR99 | 8536.69.4040 | 25 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 25 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 3 (DB, B) | 0.318" (8.08mm) | ||
 |
627-9W4-224-7NE | 11.6584 | |
7340 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Panel Mount, Through Hole | Board Lock, Grounding Indents, Shielded | 627-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-9W4-224-7NE | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Coax) | 125V | Mating Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | - | |
 |
B57-150-260I722 | - | |
4703 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-150-260I722 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
627-13W6224-7T5 | 14.2695 | |
2990 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-13W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-13W6224-7T5 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 13 (7 + 6 Coax) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 13W6 | - | |
 |
630-25W3240-4T5 | 9.2960 | |
4699 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Mounting Brackets | 630-25W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-25W3240-4T5 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 40A | Copper Alloy | UL94 V-0 | Signal and Power | 25 (22 + 3 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 4 (DC, C) - 25W3 | 0.370" (9.40mm) | |
 |
628-43W2624-1T4 | 39.5012 | |
7884 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-43W2624-1T4 | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 3 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
 |
B57-050-267I123 | - | |
2197 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-267I123 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
B57-114-622I003 | - | |
1380 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-114-622I003 | EAR99 | 8536.69.8000 | 1 | |||||||||||||||||||||||||||
 |
B57-114-665I822 | - | |
7538 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-114-665I822 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
633-M44-663-WT4 | 20.5940 | |
5283 | 0.00000000 | EDAC Inc. | 633-M | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Shielded | 633-M44 | White | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-M44-663-WT4 | EAR99 | 8536.69.4040 | 500 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal | 44 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub, High Density | - | Machined | 3 (DB, B) High Density | 0.350" (8.89mm) | ||
 |
628-47W1224-7N1 | 14.7864 | |
4167 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-47W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-47W1224-7N1 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 47 (46 + 1 Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 47W1 | - | |
 |

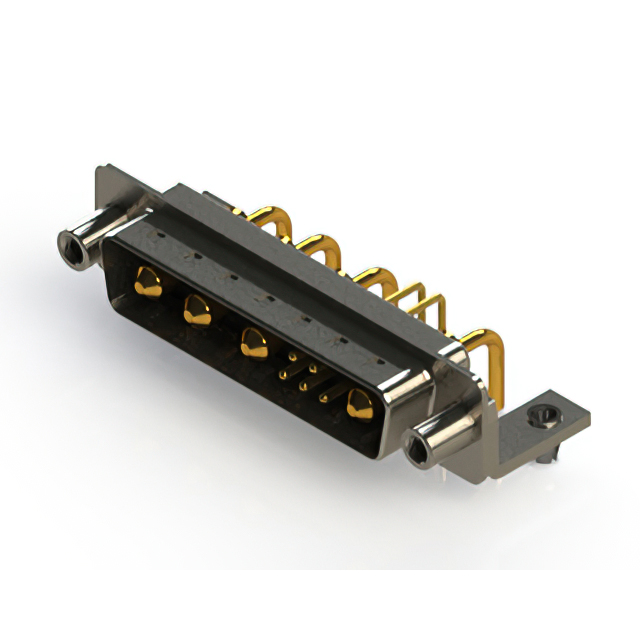

629-9W4-640-1N5 | 22.4550 | |
4147 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets | 629-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-9W4-640-1N5 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | 0.370" (9.40mm) | |
 |
628W13W3622-3NA | 24.7354 | |
1765 | 0.00000000 | EDAC Inc. | 628-WC | Tray | Active | -25°C ~ 85°C | Panel Mount, Through Hole | Shielded | 628W13W | Black | Solder Cup | IP67 - Dust Tight, Waterproof | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628W13W3622-3NA | EAR99 | 8536.69.4040 | 200 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 13 (10 + 3 Power) | 125V | Housing/Shell (M3) | Polybutylene Terephthalate (PBT), Glass Filled | Steel, Nickel Plated | D-Sub, Combo | - | - | 3 (DB, B) - 13C3, 13W3 | - | |
 |
B57-124-567I222 | - | |
2809 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-567I222 | EAR99 | 8536.69.4040 | 1 |
