D-Sub, D-Shaped Connectors(62066)
| Image | Product Number | Pricing(USD) | Quantity | ECAD | Quantity Available | Weight(Kg) | Mfr | Series | Package | Product Status | Operating Temperature | Mounting Type | Features | Base Product Number | Color | Termination | Ingress Protection | DataSheet | RoHS Status | Moisture Sensitivity Level (MSL) | REACH Status | Other Names | ECCN | HTSUS | Standard Package | Connector Type | Number of Rows | Contact Finish | Contact Finish Thickness | Current Rating (Amps) | Contact Material | Material Flammability Rating | Contact Type | Number of Positions | Voltage Rating | Flange Feature | Dielectric Material | Shell Material, Finish | Connector Style | Wire Gauge | Contact Form | Shell Size, Connector Layout | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
627-2W2-224-5T1 | 5.7656 |  |
3449 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-2W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-2W2-224-5T1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 1 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax | 2 (Coax) | 125V | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | - | |
 |
629-36W4640-2TA | 30.1202 | |
2093 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents | 629-36W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-36W4640-2TA | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 36 (32 + 4 Power) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | 0.370" (9.40mm) | |
 |
661-025-664-033 | 12.7714 | |
4928 | 0.00000000 | EDAC Inc. | 661 | Tray | Active | -55°C ~ 85°C | Panel Mount, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 661-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-661-025-664-033 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2, 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 25, 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
628-17W5624-2N6 | 27.2104 | |
2881 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W5624-2N6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (12 + 5 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 4 (DC, C) - 17W5 | - | |
 |
628-M09-321-GN2 | 6.8607 | |
8888 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-M09 | Green | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M09-321-GN2 | EAR99 | 8536.69.4040 | 300 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
629-11W1640-1N2 | 12.4290 | |
7390 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-11W1640-1N2 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
628-17W2224-1T6 | 9.1103 | |
3960 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-17W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-17W2224-1T6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 17 (15 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 17W2 | - | |
 |
622-037-268-053 | 6.6990 | |
4388 | 0.00000000 | EDAC Inc. | 622 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Filter, Mounting Brackets, Shielded | 622-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-622-037-268-053 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.318" (8.08mm) | ||
 |
630-2WK2640-3T6 | 8.6527 | |
2719 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Board Lock | 630-2WK | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-2WK2640-3T6 | EAR99 | 8536.69.4040 | 2,000 | Receptacle, Female Sockets and Male Pins | 1 | Gold | 30.0µin (0.76µm) | 30A | Copper Alloy | UL94 V-0 | Power | 2 (Coax) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 1 (DE, E) - 2V2, 2W2, 2W2C, 2WK2 | 0.520" (13.20mm) | |
 |
629-24W7640-5N2 | 38.6333 | |
1174 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | - | 629-24W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-24W7640-5N2 | EAR99 | 8536.69.4040 | 250 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 24 (17 + 7 Coax) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 24W7 | 0.370" (9.40mm) | |
 |
628-015-320-067 | 2.3725 | |
4865 | 0.00000000 | EDAC Inc. | 628 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Shielded | 628-015 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-015-320-067 | EAR99 | 8536.69.4040 | 1,000 | Receptacle, Female Sockets | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | - | |
 |
633-026-263-013 | 3.6604 | |
2913 | 0.00000000 | EDAC Inc. | 633 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 633-026 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-633-026-263-013 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 26 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 2 (DA, A) High Density | 0.350" (8.89mm) | ||
 |
630-11W1640-1N4 | 13.1361 | |
6651 | 0.00000000 | EDAC Inc. | 630-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Mounting Brackets | 630-11W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-630-11W1640-1N4 | EAR99 | 8536.69.4040 | 250 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A, 10A | Copper Alloy | UL94 V-0 | Signal and Power | 11 (10 + 1 Power) | 125V | Housing/Shell (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 11C1, 11W1 | 0.370" (9.40mm) | |
 |
634-062-263-031 | 7.1400 | |
3763 | 0.00000000 | EDAC Inc. | 634 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Mounting Brackets, Shielded | 634-062 | - | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-634-062-263-031 | EAR99 | 8536.69.4040 | 50 | Receptacle, Female Sockets | 3 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 62 | - | Housing/Shell (Unthreaded) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, High Density | - | - | 4 (DC, C) High Density | 0.350" (8.89mm) | ||
 |
628-5W5-222-1T2 | 9.2106 | |
1909 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-5W5 | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W5-222-1T2 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 1 | Gold | Flash | 10A | Copper Alloy | UL94 V-0 | Signal and Power | 5 (Power) | 125V | Board Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 5W5 | - | |
 |
627-M15-323-BN1 | 14.0895 | |
6703 | 0.00000000 | EDAC Inc. | 627-M | Tray | Active | -55°C ~ 125°C | Through Hole | Grounding Indents, Shielded | 627-M15 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-M15-323-BN1 | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 5A | Copper Alloy | UL94 V-0 | Signal | 15 | - | Board Side (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Nickel Plated | D-Sub | - | Machined | 2 (DA, A) | - | |
 |
627-037-341-076 | 5.7008 | |
2018 | 0.00000000 | EDAC Inc. | 627 (Metal) | Tray | Active | -55°C ~ 85°C | Through Hole | Board Lock, Grounding Indents, Shielded | 627-037 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-037-341-076 | EAR99 | 8536.69.4040 | 1,000 | Plug, Male Pins | 2 | Gold | 15.0µin (0.38µm) | 3A per Contact | Brass | UL94 V-0 | Signal | 37 | - | Board Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | - | |
 |
628-5W1-624-5NA | 9.5209 | |
6026 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-5W1 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-5W1-624-5NA | EAR99 | 8536.69.4040 | 400 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 5 (4 + 1 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 1 (DE, E) - 5W1 | - | |
 |
628-43W2224-3T6 | 14.0138 | |
7645 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Board Lock, Shielded | 628-43W | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-43W2224-3T6 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 3 | Gold | Flash | 5A, 30A | Copper Alloy | UL94 V-0 | Signal and Power | 43 (41 + 2 Power) | 125V | Mating Side (4-40) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 5 (DD, D) - 43W2 | - | |
 |

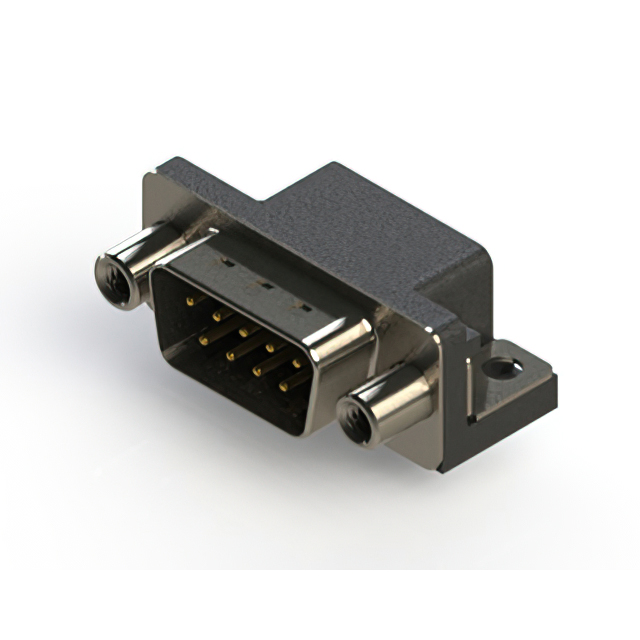

621-009-660-510 | 3.4178 | |
6056 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Grounding Indents, Mounting Brackets, Shielded | 621-009 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-009-660-510 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | 30.0µin (0.76µm) | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 9 | - | Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 1 (DE, E) | 0.318" (8.08mm) | ||
 |
628-7W2-224-7N4 | 8.5017 | |
5121 | 0.00000000 | EDAC Inc. | 628-C | Tray | Active | -55°C ~ 125°C | Through Hole | Shielded | 628-7W2 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-628-7W2-224-7N4 | EAR99 | 8536.69.4040 | 100 | Receptacle, Female Sockets | 2 | Gold | Flash | - | Copper Alloy | UL94 V-0 | Coax and Signal | 7 (5 + 2 Coax) | 125V | Board Side (4-40); Mating Side (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 2 (DA, A) - 7W2 | - | |
 |
B57-024-561I102 | - | |
2184 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-024-561I102 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
628-M09-622-LT2 | 9.5461 | |
8649 | 0.00000000 | EDAC Inc. | 628-M | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Shielded | 628-M09 | Blue | Solder Cup | - | download | ROHS3 Compliant | REACH Unaffected | 151-628-M09-622-LT2 | EAR99 | 8536.69.4040 | 500 | Receptacle, Female Sockets | 2 | Gold | 30.0µin (0.76µm) | 5A per Contact | Copper Alloy | UL94 V-0 | Signal and Power | 9 | - | Housing/Shell (4-40) | Polyamide (PA6T), Nylon 6T | Steel, Tin Plated | D-Sub | - | Machined | 1 (DE, E) | - | ||
 |
663-025-264-006 | 8.4152 | |
7431 | 0.00000000 | EDAC Inc. | 663 | Tray | Active | -55°C ~ 85°C | Through Hole, Right Angle | Grounding Indents, Shielded | 663-025 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-663-025-264-006 | EAR99 | 8536.69.4040 | 25 | Plug, Male Pins; Receptacle, Female Sockets | 2, 2 | Gold | Flash | 3A per Contact | Brass, Phosphor Bronze | UL94 V-0 | Signal | 25, 25 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub - Stacked | - | - | 3 (DB, B); 3 (DB, B) | 0.318" (8.08mm) | ||
 |
B57-124-261I702 | - | |
3929 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-124-261I702 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
621-015-260-536 | 2.8980 | |
4717 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 125°C | Board Edge, Through Hole, Right Angle | Board Lock, Grounding Indents, Mounting Brackets, Shielded | 621-015 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-015-260-536 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 15 | - | Mating Side, Female Screwlock (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 2 (DA, A) | 0.318" (8.08mm) | ||
 |
B57-050-267IE02 | - | |
4852 | 0.00000000 | EDAC Inc. | * | Bulk | Active | - | ROHS3 Compliant | 1 (Unlimited) | 151-B57-050-267IE02 | EAR99 | 8536.69.4040 | 1 | |||||||||||||||||||||||||||
 |
621-037-268-043 | 6.7410 | |
5856 | 0.00000000 | EDAC Inc. | 621 | Tray | Active | -55°C ~ 85°C | Board Edge, Through Hole, Right Angle | Board Lock, Filter, Grounding Indents, Mounting Brackets, Shielded | 621-037 | Black | Solder | - | download | ROHS3 Compliant | REACH Unaffected | 151-621-037-268-043 | EAR99 | 8536.69.4040 | 50 | Plug, Male Pins | 2 | Gold | Flash | 3A per Contact | Copper Alloy | UL94 V-0 | Signal | 37 | - | Mating Side, Female Screwlock (4-40) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub | - | - | 4 (DC, C) | 0.318" (8.08mm) | ||
 |
629-9W4-250-2TC | 7.2215 | |
2527 | 0.00000000 | EDAC Inc. | 629-C | Tray | Active | -55°C ~ 125°C | Through Hole, Right Angle | Grounding Indents, Mounting Brackets | 629-9W4 | Black | Solder | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-629-9W4-250-2TC | EAR99 | 8536.69.4040 | 2,000 | Plug, Male Pins | 2 | Gold | Flash | 5A, 20A | Copper Alloy | UL94 V-0 | Signal and Power | 9 (5 + 4 Power) | 125V | Housing/Shell (M3) | Polyester Thermoplastic | Steel, Tin Plated | D-Sub, Combo | - | - | 3 (DB, B) - 9W4 | 0.370" (9.40mm) | |
|
627-36W4622-5NA | 38.9512 | |
2689 | 0.00000000 | EDAC Inc. | 627-C | Tray | Active | -55°C ~ 125°C | Free Hanging (In-Line) | Grounding Indents, Shielded | 627-36W | Black | Solder Cup | - | download | ROHS3 Compliant | 1 (Unlimited) | REACH Unaffected | 151-627-36W4622-5NA | EAR99 | 8536.69.4040 | 100 | Plug, Male Pins | 3 | Gold | 30.0µin (0.76µm) | - | Copper Alloy | UL94 V-0 | Coax and Signal | 36 (32 + 4 Coax) | 125V | Board Side (M3) | Polyester Thermoplastic | Steel, Nickel Plated | D-Sub, Combo | - | - | 5 (DD, D) - 36W4 | - |
